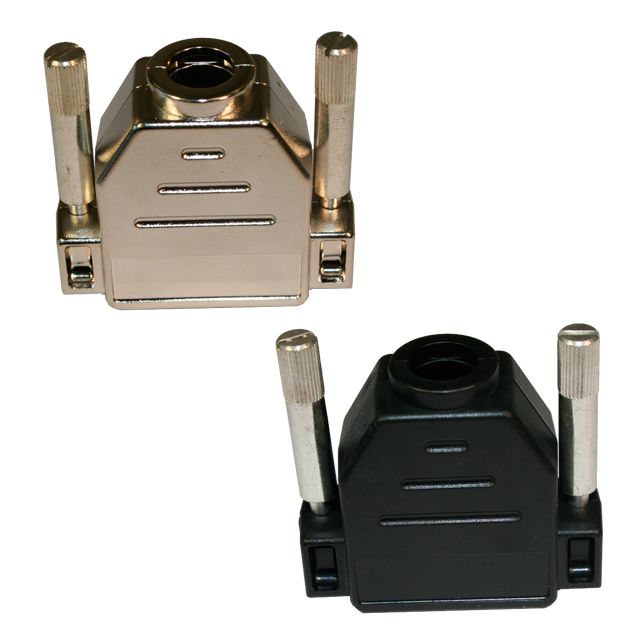

973 Series Straight/Top Entry Backshell | 180°
Features
- Top Entry Backshells available in 5 industry sizes/positions (9, 15, 25, 37, 50).
- Standard (9, 15, 25, 37, 50) or High Density (15, 26, 44, 62, 78)
- 4-40 Thumbscrews supplied with backshell.
- Perimeter sealing lips for secure sealing.
- Available in metalized plastic and plastic.
- Metalized plastic provides up to 60 dB shielding.
Materials
- Metalized Plastic: High temperature - UL 94V-HB
Plating: Nickel over copper - Plastic: High temperature plastic - UL 94V-HB (Black)
- Hardware: Steel, nickel plating
Notes
180° Straight/Top Entry D-Sub Backshell
Position |
Part # |
Material |
Data Sheet |
STEP |
3D PDF |
|---|---|---|---|---|---|
| 9 Kit (15 H.D.) | 973-009-020R121 | Metalized Plastic | |||
| 15 Kit (26 H.D.) | 973-015-020R121 | Metalized Plastic | |||
| 25 Kit (44 H.D.) | 973-025-020R121 | Metalized Plastic | |||
| 37 Kit (62 H.D.) | 973-037-020R121 | Metalized Plastic | |||
| 50 Kit (78 H.D.) | 973-050-020R121 | Metalized Plastic | |||
| 9 Kit (15 H.D.) | 973-009-010R011 | Plastic | |||
| 15 Kit (26 H.D.) | 973-015-010R011 | Plastic | |||
| 25 Kit (44 H.D.) | 973-025-010R011 | Plastic | |||
| 37 Kit (62 H.D.) | 973-037-010R011 | Plastic | |||
| 50 Kit (78 H.D.) | 973-050-010R011 | Plastic |
