IP67 D-Sub Connectors

IP67 Connector Technology

The IP67 D-Sub Connector product offering are available in Standard & High Density pin configurations as well as 3 termination types (Cable Mount, Vertical Mount & Right Angle) meeting IP67 connector (IEC 60529) requirements . For more information on the drop in replacement proprietary sealing technology, see the SEAL-D® landing page.

In 2011, NorComp introduced a proprietary sealing technology that transformed our standard sized d-sub connector into an IP67 connector able to fully meet the IEC 60529 IP67 requirement for Ingress Protection (IP). These SEAL-D® IP67 connectors utilize a highly innovative internal sealing technology thus eliminating the need to redesign enclosures and PC boards when implementing IP67 design upgrades. The IP67 requirement met means the connection is guaranteed protection against water streaming from powerful jets as well as up to 30 minutes at 1 meter of submersion.

This IP67 connector technology has been a well received innovation industry wide when compared to its predecessor with a much larger footprint that is sealed externally around the outer shell to meet IP requirements. Moreover, once mated - the NorComp SEAL-D® connectors are rated IP68 connectors capable of protecting against longer periods of submersion under a higher pressure.

IP67 Connector Variations

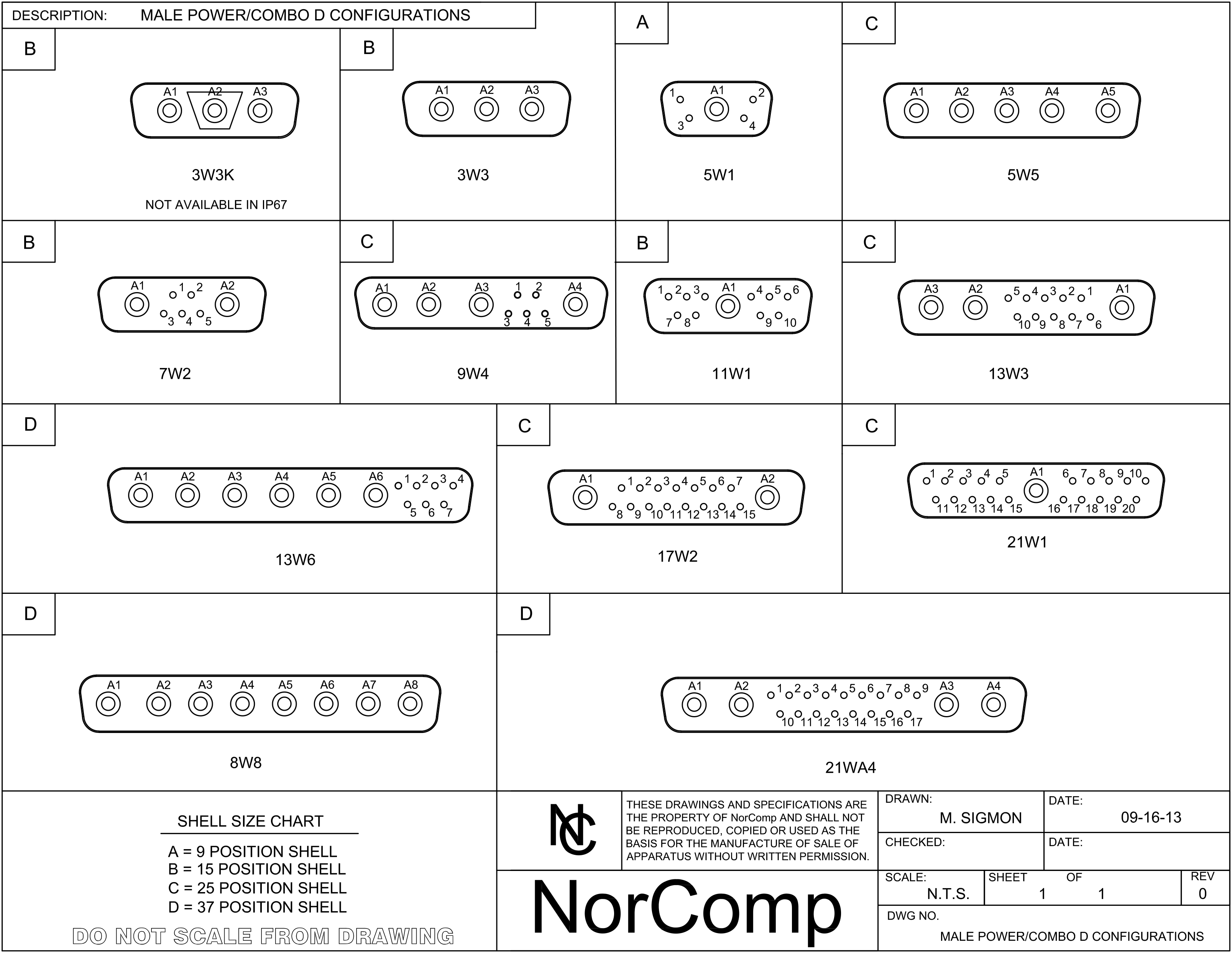

The NorComp IP67 connector product offering is available in both standard density (9 pin, 15 pin, 25 pin, 37 pin), high density (15 pin, 26 pin, 44 pin, 62 pin), and 22 Combo-D variations in configurations in cable mount, vertical mount & right angle connector options. Rounding out the product offering are IP67 backshells, IP67 sealing caps and sealing flanges.

SEAL-D®

• Standard: 9 pin, 15 pin, 25 pin
• High Density: 15 pin, 26 pin, 44 pin
• Combo-D / High Power in 12 varations

NANOOK

• Standard: 9 pin, 15 pin, 25 pin, 37 pin
• High Density: 15 pin, 26 pin, 44 pin, 62 pin
• Combo-D / High Power in 18 variations

IP67 Connector Applications

The NorComp IP67 connector product offering is engineered for use in a vast amount of heavy-duty, demanding applications across multiple industries. In medical electronics there have been multiple success stories stemming from patient transport devices to hand held computers and scanners that are subject to being washed down continually. More applications include gas and electric water metering systems as well as remote sensors and gauges stationed outdoors that require an IP67 connector solution for a reliable transfer of signal while working under these stressful and harsh environments.
