CDF Solder Cup
Features
- Combo-D Connectors in 18 industry standard contact configuration
- Available with 20 or 40 amp power contacts
- Contact NorComp to request specifications regarding contact configurations not shown below
Materials
- Shell: Steel, Nickel plating
- Insulator: PBT, UL 94V-0
(230°C process temp)
- Contacts: Machined - Brass
- Contact Plating: Gold Flash or 30u" Gold
- Operating Temperature: -25°C to +85°C
Notes
- 2W2 / 2W2K / 5W1 = Standard 9 Pin Shell
3W3 / 3W3K / 7W2 / 11W1 = Standard 15 Pin Shell
5W5 / 9W4 / 13W3 / 17W2 / 21W1 = Standard 25 Pin Shell
8W8 / 13W6 / 17W5 / 25W3 / 27W2 / 21WA4 = Standard 37 Pin Shell
Reference Information
POWER-D MIxed D-sub Flange - Solder Cup - IP67 Rated
Part # |
Gender |
Contact Arrangement |
Data Sheet |
STEP (20 AMP) |
STEP (40 AMP) |
3D PDF (40 AMP) |
|---|---|---|---|---|---|---|
| CDFS2W2103LYYY | Male | 2W2 | ||||
| CDFS2W2203LYYY | Female | 2W2 | ||||
| CDFS5W1103LYYY | Male | 5W1 | ||||
| CDFS5W1203LYYY | Female | 5W1 | ||||

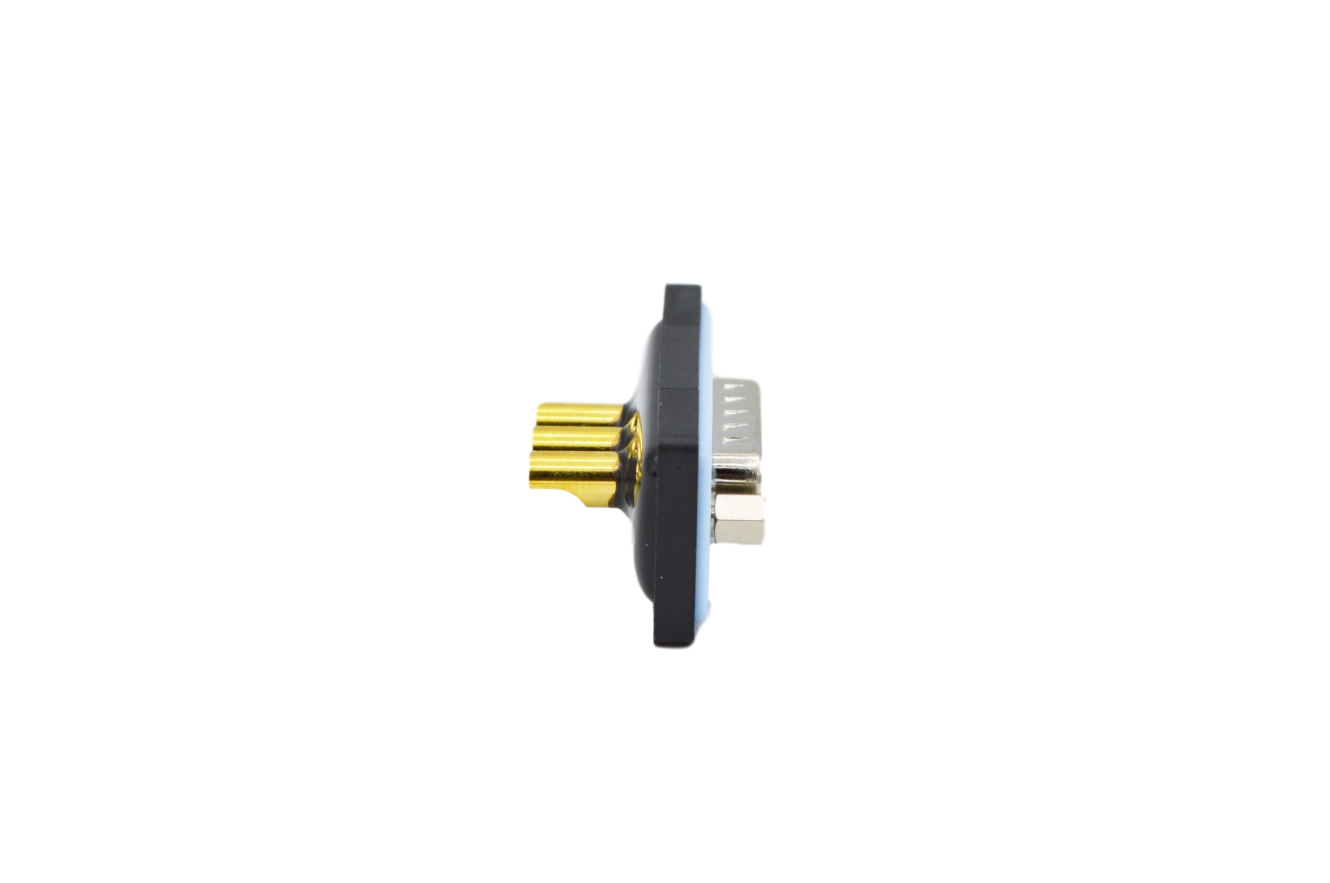

| CDFS3W3103LYYY | Male | 3W3 | ||||
| CDFS3W3203LYYY | Female | 3W3 | ||||
| CDFS3W3K103LYYY | Male | 3W3K | ||||
| CDFS3W3K203LYYY | Female | 3W3K | ||||
| CDFS7W2103LYYY | Male | 7W2 | ||||

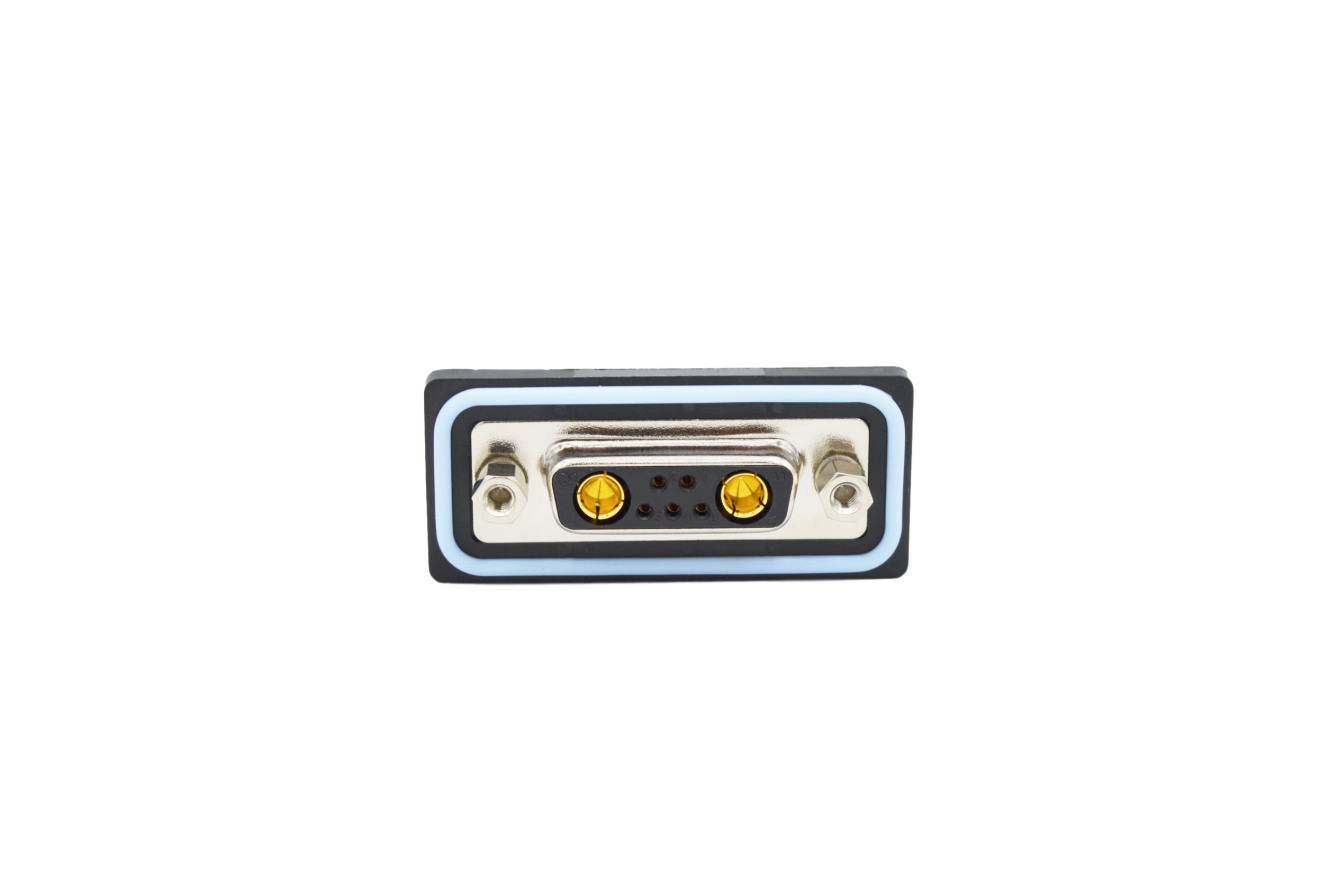

| CDFS7W2203LYYY | Female | 7W2 | ||||
| CDFS11W1103LYYY | Male | 11W1 | ||||
| CDFS11W1203LYYY | Female | 11W1 | ||||
| CDFS5W5103LYYY | Male | 5W5 | ||||
| CDFS5W5203LYYY | Female | 5W5 | ||||
| CDFS9W4103LYYY | Male | 9W4 | ||||
| CDFS9W4203LYYY | Female | 9W4 | ||||
| CDFS13W3103LYYY | Male | 13W3 | ||||
| CDFS13W3203LYYY | Female | 13W3 | ||||
| CDFS17W2103LYYY | Male | 17W2 | ||||
| CDFS17W2203LYYY | Female | 17W2 | ||||
| CDFS8W8103LYYY | Male | 8W8 | ||||
| CDFS8W8203LYYY | Female | 8W8 | ||||
| CDFS13W6103LYYY | Male | 13W6 | ||||
| CDFS13W6203LYYY | Female | 13W6 | ||||
| CDFS27W2103LYYY | Male | 27W2 | ||||
| CDFS27W2203LYYY | Female | 27W2 |
