976 Series Flat Ribbon Backshell | 180° Top Entry

Name: NorComp
Address: 3810 Shutterfly Rd #200, Charlotte, NC, 28217, US
Telephone: (704) 424-5448

Flat Ribbon Backshells available in 4 industry sizes/positions:
- Standard (9, 15, 25, 37) or High Density (15, 26, 44, 62)
4-40 Mating screws supplied with backshell.
Perimeter sealing lips for secure sealing.

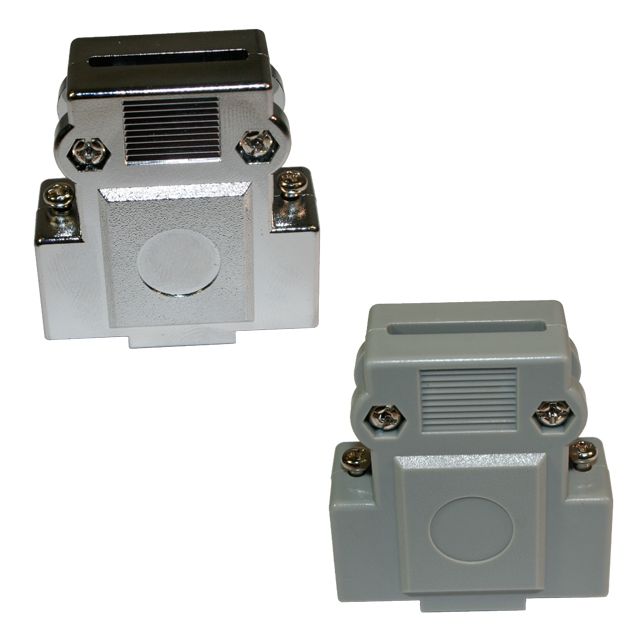

Available in metalized plastic and plastic.
Metalized plastic provides up to 60 dB shielding.
Easy assembly reduces manufacturing cost.
Works with most industry standard IDC Ribbon D-Sub connectors.
Integral strain relief built into backshell (no additional parts).

Assembly Instructions

Internal Dimensions

Material Declarations:

Flat Cable Top Entry Backshell

Filter

Position

Material

Position	Part #	Material
9	976-009-020R121 Order Samples Check Distributor Stock	Metalized Plastic
15	976-015-020R121 Order Samples Check Distributor Stock	Metalized Plastic
25	976-025-020R121 Order Samples Check Distributor Stock	Metalized Plastic
37	976-037-020R121 Order Samples Check Distributor Stock	Metalized Plastic
9	976-009-010R031 Order Samples Check Distributor Stock	Grey Plastic
15	976-015-010R031 Order Samples Check Distributor Stock	Grey Plastic
25	976-025-010R031 Order Samples Check Distributor Stock	Grey Plastic
37	976-037-010R031 Order Samples Check Distributor Stock	Grey Plastic
