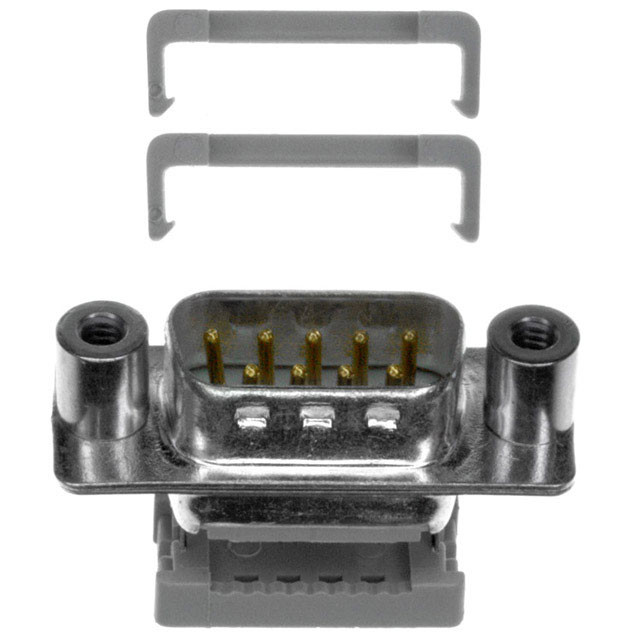

184 Series Low Profile IDC D-Sub Connectors
Features
- Available in 4 industry sizes/positions (9, 15, 25, 37).
- Low termination height from mounting flange to the back of connector.
- Visual inspection of termination possible.
- Fluted cover provides correct alignment of cable.
- Contacts accept 28 awg solid or stranded .050" center flat ribbon cable.
- Pre-assembled body and cover.
- 2 mating hardware options available.
Materials
- Shell: Steel, nickel plating
- Insulator: PBT. U.L. rated 94V-O (230°C process temp)
- Contacts:
Male - Brass
Female - Phosphor bronze - Plating: Gold flash in mating area, tin in termination area
Notes
*THIS PRODUCT HAS BEEN DISCONTINUED*
*Alert - Product Change Notification (PCN) Available* See 184A Series
Low Profile IDC D-Sub Connectors - Discontinued - See 184A Series
Position |
Part # |
Gender |
Data Sheet |
|---|---|---|---|
| 9 | 184-009-193Lyy1 | Male | |
| 9 | 184-009-293Lyy1 | Female | |
| 15 | 184-015-193Lyy1 | Male | |
| 15 | 184-015-293Lyy1 | Female | |
| 25 | 184-025-193Lyy1 | Male | |
| 25 | 184-025-293Lyy1 | Female | |
| 37 | 184-037-193Lyy1 | Male | |
| 37 | 184-037-293Lyy1 | Female |
