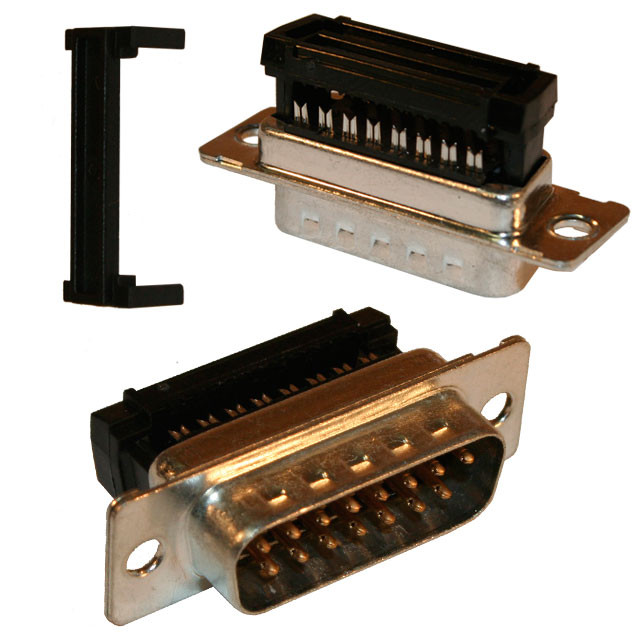

184A Series Low Profile IDC D-Sub

Name: NorComp
Address: 3810 Shutterfly Rd #200, Charlotte, NC, 28217, US
Telephone: (704) 424-5448

Low-profile IDC d-subs available in 4 industry sizes/positions
- Standard Density (9 pin, 15 pin, 25 pin, 37 pin).
Low termination height from mounting flange to the back of connector.
Visual inspection of termination possible.
Fluted cover provides correct alignment of cable.
Contacts accept 28 awg solid or stranded .050" center flat ribbon cable.
Pre-assembled body and cover. Strain Relief provided with connector.
1 mating hardware option available (See Data Sheets).

Panel Cutout:

Material Declarations:

Strain Relief Bar

Individual Strain Relief Bar

184AYYY-SRB

Must be Purchased Separately

Filter

Position

Gender

Position	Part #	Gender	Connector
9	184A009-192Lyy1 Order Samples Check Distributor Stock	Male	IDC
9	184A009-292Lyy1 Order Samples Check Distributor Stock	Female	IDC
15	184A015-192Lyy1 Order Samples Check Distributor Stock	Male	IDC
15	184A015-292Lyy1 Order Samples Check Distributor Stock	Female	IDC
25	184A025-192Lyy1 Order Samples Check Distributor Stock	Male	IDC
25	184A025-292Lyy1 Order Samples Check Distributor Stock	Female	IDC
37	184A037-192Lyy1 Order Samples Check Distributor Stock	Male	IDC
37	184A037-292Lyy1 Order Samples Check Distributor Stock	Female	IDC
