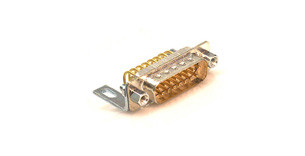

174 Series Right Angle D-Sub Connector | .370 Footprint
Features
- Available in 5 industry sizes/positions
- Standard Density (9, 15, 25, 37, 50).
- Available in Industry Standard Footprint with 2 different mounting options.
- Tin shells available.
- Male shells have indents to provide grounding and additional retention.
- Non-removable machined contacts for high reliability.
Materials
- Shell: Steel, Tin plating
- Insulator: Glass-filled thermoplastic, U.L. rated 94V-O
(260°C process temp) - Machined contacts:
Male - Brass | Female -Brass
- Plating: Gold flash on entire contact (contact factory for other plating options)
Notes
*DISCONTINUED SERIES*
SEE REPLACEMENT 174-E SERIES
Product Change Notification HERE
Available in .318" and .590" footprint with and without stabilizer bar (consult factory)
Standard Density Right Angle | .370" Footprint | Machined Contacts
Position |
Part # |
Gender |
Data Sheet |
STEP |
3D PDF |
|---|---|---|---|---|---|
| 9 | 174-009-112RYY1 | Male | |||
| 9 | 174-009-212RYY1 | Female | N/A | N/A | N/A |
| 15 | 174-015-112RYY1 | Male | |||
| 15 | 174-015-212RYY1 | Female | N/A | N/A | N/A |
| 25 | 174-025-112RYY1 | Male | |||
| 25 | 174-025-212RYY1 | Female | N/A | N/A | N/A |
| 37 | 174-037-112RYY1 | Male | |||
| 37 | 174-037-212RYY1 | Female | N/A | N/A | N/A |
| 50 | 174-050-112RYY1 | Male | N/A | N/A | N/A |
| 50 | 174-050-212RYY1 | Female | N/A | N/A | N/A |
