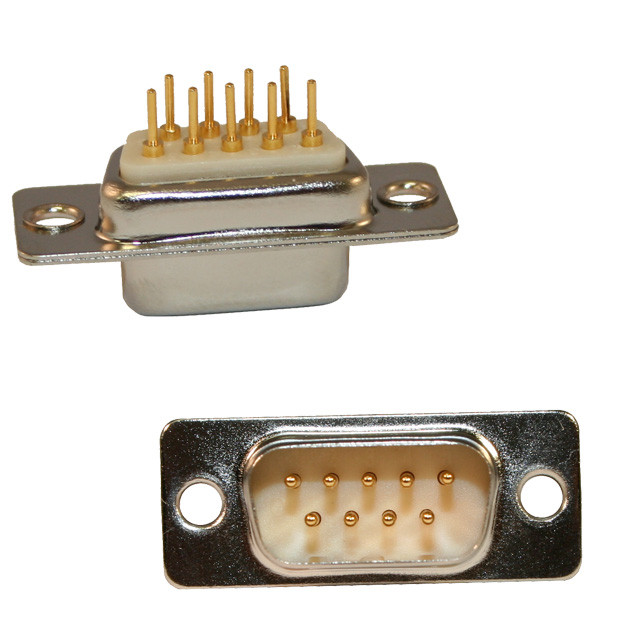

172-E Series PCB Dip Solder D-Sub Connector | Economy

Name: NorComp
Address: 3810 Shutterfly Rd #200, Charlotte, NC, 28217, US
Telephone: (704) 424-5448

Dip solder d-subs available in 5 industry sizes/positions
- Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Nickel shells available only. Low cost economy series.
Male shells have indents to provide grounding and additional retention.
Screw machined contacts offer high reliability. Non-removable contacts.
Optional mounting hardware available

Shell: Steel, Nickel plated
Insulator: Glass-filled thermoplastic, UL94 V-0
(260°C process temp)
Machined contacts: Male pins - Brass | Female pins - Brass
Plating: Gold flash on entire contact
- (contact us for other plating options)

EN NOTIFICATIONS

Description	PDF
EN # 92724

Panel Cutout:

Mating Cycles:

Material Declarations:

Filter

Position

Gender

Position	Part #	Gender	Shell
9	172-E09-113Ryy1 Order Samples Check Distributor Stock	Male	Nickel
9	172-E09-213Ryy1 Order Samples Check Distributor Stock	Female	Nickel
15	172-E15-113Ryy1 Order Samples Check Distributor Stock	Male	Nickel
15	172-E15-213Ryy1 Order Samples Check Distributor Stock	Female	Nickel
25	172-E25-113Ryy1 Order Samples Check Distributor Stock	Male	Nickel
25	172-E25-213Ryy1 Order Samples Check Distributor Stock	Female	Nickel
37	172-E37-113Ryy1 Order Samples Check Distributor Stock	Male	Nickel
37	172-E37-213Ryy1 Order Samples Check Distributor Stock	Female	Nickel
50	172-E50-113Ryy1 Order Samples Check Distributor Stock	Male	Nickel
50	172-E50-213Ryy1 Order Samples Check Distributor Stock	Female	Nickel
