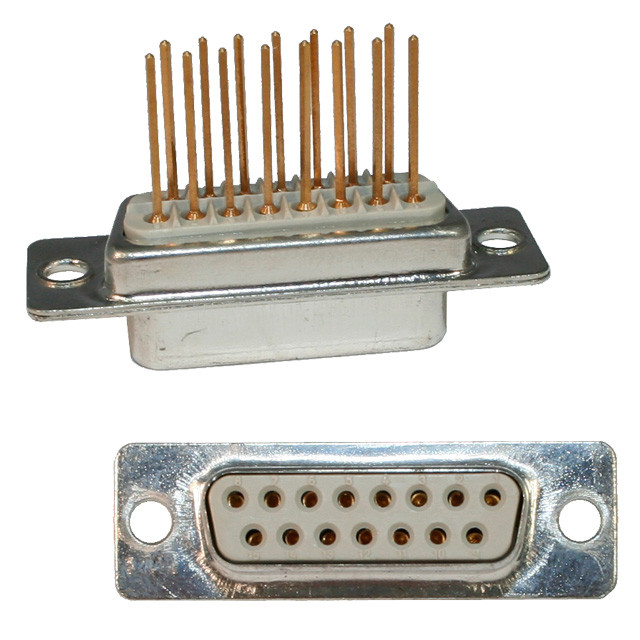

172 Series Wire Wrap D-Sub Wire Wrap Connector

Features

D-Sub wire wrap connectors available in 5 industry sizes/positions
- Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Nickel shells have indents to provide grounding and additional retention.
Screw machined contacts offer high reliability. Non-removable contacts.
Optional mounting hardware available.

Materials

Shell: Steel, nickel plated
Insulator: Glass-filled thermoplastic, UL94 V-0
(260°C process temp)
Machined contacts:
Male pins - Brass | Female pins - Brass
Plating: Gold flash on entire contact

Notes

Panel Cutout:

Mating Cycles:

yy = Hardware Option

Material Declarations:

Product Change Notification

PCN#081222: Tin Plated Shells Discontinued
PCN#071621: Hardware Geometry Change

Standard Wire Wrap D-Sub Connectors | Machined Contacts

Filter

Position

Gender

Position	Part #	Gender	Shell
9	172-009-143R001 Order Samples Check Distributor Stock	Male	Nickel
9	172-009-143R011 Order Samples Check Distributor Stock	Male	Nickel
9	172-009-143R021 Order Samples Check Distributor Stock	Male	Nickel
9	172-009-143R031 Order Samples Check Distributor Stock	Male	Nickel
9	172-009-143R051 Order Samples Check Distributor Stock	Male	Nickel
9	172-009-143R911 Order Samples Check Distributor Stock	Male	Nickel
9	172-009-243R001 Order Samples Check Distributor Stock	Female	Nickel
9	172-009-243R011 Order Samples Check Distributor Stock	Female	Nickel
9	172-009-243R021 Order Samples Check Distributor Stock	Female	Nickel
9	172-009-243R031 Order Samples Check Distributor Stock	Female	Nickel
9	172-009-243R051 Order Samples Check Distributor Stock	Female	Nickel
9	172-009-243R911 Order Samples Check Distributor Stock	Female	Nickel
15	172-015-143R001 Order Samples Check Distributor Stock	Male	Nickel
15	172-015-143R011 Order Samples Check Distributor Stock	Male	Nickel
15	172-015-143R021 Order Samples Check Distributor Stock	Male	Nickel
15	172-015-143R031 Order Samples Check Distributor Stock	Male	Nickel
15	172-015-143R051 Order Samples Check Distributor Stock	Male	Nickel
15	172-015-143R911 Order Samples Check Distributor Stock	Male	Nickel
15	172-015-243R001 Order Samples Check Distributor Stock	Female	Nickel
15	172-015-243R011 Order Samples Check Distributor Stock	Female	Nickel
15	172-015-243R021 Order Samples Check Distributor Stock	Female	Nickel
15	172-015-243R031 Order Samples Check Distributor Stock	Female	Nickel
15	172-015-243R051 Order Samples Check Distributor Stock	Female	Nickel
15	172-015-243R911 Order Samples Check Distributor Stock	Female	Nickel
25	172-025-143R001 Order Samples Check Distributor Stock	Male	Nickel
25	172-025-143R011 Order Samples Check Distributor Stock	Male	Nickel
25	172-025-143R021 Order Samples Check Distributor Stock	Male	Nickel
25	172-025-143R031 Order Samples Check Distributor Stock	Male	Nickel
25	172-025-143R051 Order Samples Check Distributor Stock	Male	Nickel
25	172-025-143R911 Order Samples Check Distributor Stock	Male	Nickel
25	172-025-243R001 Order Samples Check Distributor Stock	Female	Nickel
25	172-025-243R011 Order Samples Check Distributor Stock	Female	Nickel
25	172-025-243R021 Order Samples Check Distributor Stock	Female	Nickel
25	172-025-243R031 Order Samples Check Distributor Stock	Female	Nickel
25	172-025-243R051 Order Samples Check Distributor Stock	Female	Nickel
25	172-025-243R911 Order Samples Check Distributor Stock	Female	Nickel
37	172-037-143R001 Order Samples Check Distributor Stock	Male	Nickel
37	172-037-143R011 Order Samples Check Distributor Stock	Male	Nickel
37	172-037-143R021 Order Samples Check Distributor Stock	Male	Nickel
37	172-037-143R031 Order Samples Check Distributor Stock	Male	Nickel
37	172-037-143R051 Order Samples Check Distributor Stock	Male	Nickel
37	172-037-143R911 Order Samples Check Distributor Stock	Male	Nickel
37	172-037-243R001 Order Samples Check Distributor Stock	Female	Nickel
37	172-037-243R011 Order Samples Check Distributor Stock	Female	Nickel
37	172-037-243R021 Order Samples Check Distributor Stock	Female	Nickel
37	172-037-243R031 Order Samples Check Distributor Stock	Female	Nickel
37	172-037-243R051 Order Samples Check Distributor Stock	Female	Nickel
37	172-037-243R911 Order Samples Check Distributor Stock	Female	Nickel
50	172-050-143R001 Order Samples Check Distributor Stock	Male	Nickel
50	172-050-143R011 Order Samples Check Distributor Stock	Male	Nickel
50	172-050-143R021 Order Samples Check Distributor Stock	Male	Nickel
50	172-050-143R031 Order Samples Check Distributor Stock	Male	Nickel
50	172-050-143R051 Order Samples Check Distributor Stock	Male	Nickel
50	172-050-143R911 Order Samples Check Distributor Stock	Male	Nickel
50	172-050-243R001 Order Samples Check Distributor Stock	Female	Nickel
50	172-050-243R011 Order Samples Check Distributor Stock	Female	Nickel
50	172-050-243R021 Order Samples Check Distributor Stock	Female	Nickel
50	172-050-243R031 Order Samples Check Distributor Stock	Female	Nickel
50	172-050-243R051 Order Samples Check Distributor Stock	Female	Nickel
50	172-050-243R911 Order Samples Check Distributor Stock	Female	Nickel
9	172-009-142Ryy1 Order Samples Check Distributor Stock	Male	Tin
9	172-009-242Ryy1 Order Samples Check Distributor Stock	Female	Tin
15	172-015-142Ryy1 Order Samples Check Distributor Stock	Male	Tin
15	172-015-242Ryy1 Order Samples Check Distributor Stock	Female	Tin
25	172-025-142Ryy1 Order Samples Check Distributor Stock	Male	Tin
25	172-025-242Ryy1 Order Samples Check Distributor Stock	Female	Tin
37	172-037-142Ryy1 Order Samples Check Distributor Stock	Male	Tin
37	172-037-242Ryy1 Order Samples Check Distributor Stock	Female	Tin
50	172-050-142Ryy1 Order Samples Check Distributor Stock	Male	Tin
50	172-050-242Ryy1 Order Samples Check Distributor Stock	Female	Tin
