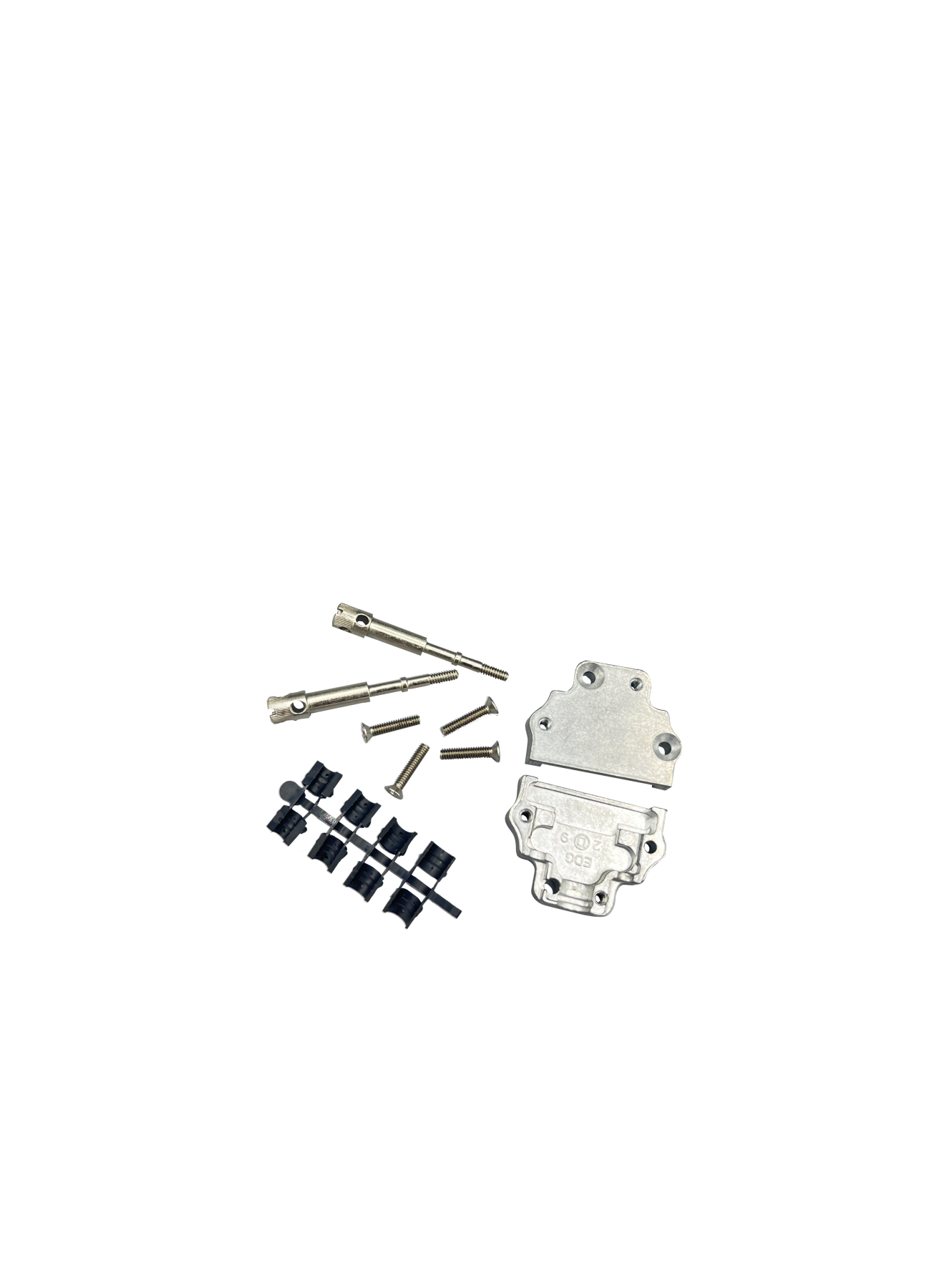

MICRO-D Backshells
Features
- Die cast metalized backshells
- Designed for the NorComp 580-M series
- Available in 3 industry standard sizes | 9, 15, 25
- Compatible with most industry micro D-Subs
- 1/3 the size of a standard backshell
- Metal to metal interface for robust mechanical connections & shield effectiveness
- -40°C TO +85°C (with grommets)
- -40°C TO +125°C (without grommets)
Materials
- BACKSHELL: ZAMAK 5, NO PLATING
- JACK SCREW: NICKEL PLATED STEEL
- HOUSING SCREW: NICKEL PLATED STEEL
- 0.3 N*m MAX
- GROMMET: ABS UL94 V-0, BLACK
Ruggedized Miniature Backshell Systems
Position |
Part # |
Data Sheet |
STEP |
3D PDF |
|---|---|---|---|---|
| 9 | 966-009-030R121 | |||
| 15 | 966-015-030R121 | |||
| 25 | 966-025-030R121 |
The NorComp MICRO-D backshell optimizes the conventional D-Sub backshell into a compact configuration, perfect for space-restricted applications like industrial robotics, commercial military (COTS) equivalents, and telecommunications. This design efficiently manages space while ensuring robust performance in demanding environments.
