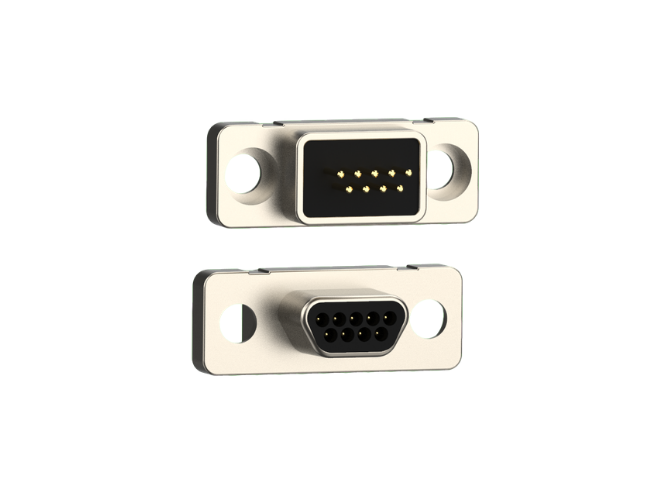

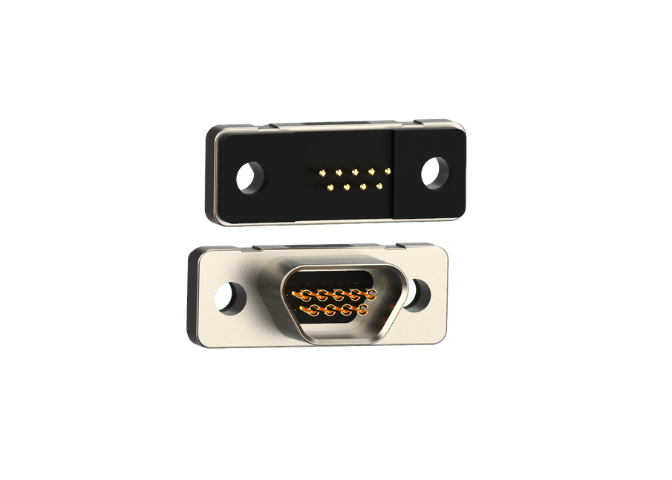

580-M Series PCB Dip Solder
Features
- Standard Density (9 pos, 15 pos, 25 pos)
- Non-removable machined contacts for high reliability
- 2 amp contact rating
Materials
- Shell: Zinc Alloy, Nickel Plating
- Insulator: LCP, UL94 V-0
(260°C process temp)
- Contacts: Machined - Brass
- Contact Plating: 15u" Gold (30u" Gold Available)
- Operating Temperature: -40°C to +125°C
Notes
NorComp (380/381/960/CCA) Series VS. (580-M/581-M) Series
580-M Series PCB Dip Solder
Position |
Part # |
Gender |
Contact |
Data Sheet |
STEP |
3D PDF |
|---|---|---|---|---|---|---|
| 9 | 580-M09-113L001 | Male | Vertical Solder Tail | |||
| 9 | 580-M09-213L001 | Female | Vertical Solder Tail | |||
| 15 | 580-M15-113L001 | Male | Vertical Solder Tail | |||
| 15 | 580-M15-213L001 | Female | Vertical Solder Tail | |||
| 25 | 580-M25-113L001 | Male | Vertical Solder Tail | |||
| 25 | 580-M25-213L001 | Female | Vertical Solder Tail |
