MICRO-D Header

SMALL. COMPACT. RUGGED DESIGN.

The compact design of the NorComp MICRO-D Connector offers a more condensed footprint when compared to a standard d-sub connector. This high reliability, space saving design is ideal for applications such as:
Example Applications:
  • Industrial Robotics
  • Satellite Base Stations
  • Broadband Network Infrastructure
  • RF Power Amplifiers
  • DC Motor Controllers
  • Hand Held & Portable LCD/LED
  • Laboratory Meterology
  • Test & Measurement

FEATURES & BENEFITS

  • Available in 3 industry standard sizes (9, 15, 25)
  • Vertical board mount, Right Angle board mount, and Cable mount options
  • 0.050" (1.27mm) contact spacing. Less than 1/3 the size of a standard d-sub
  • Metal to metal interface for robust mechanical connection and shield effectiveness
  • 1 amp contact rating / -55C to +85C operating temperature range
  • Intermatable with most commercial competitors products

Micro Miniature D-Sub Connector Series

  • Vertical Board Mount
  • Right Angle Board Mount
  • Backshell Kit
  • Contacts for Backshell Kit

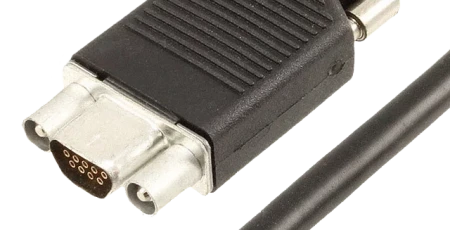

  • Cable Assemblies
  • Hardware Kit


Micro-D Series
